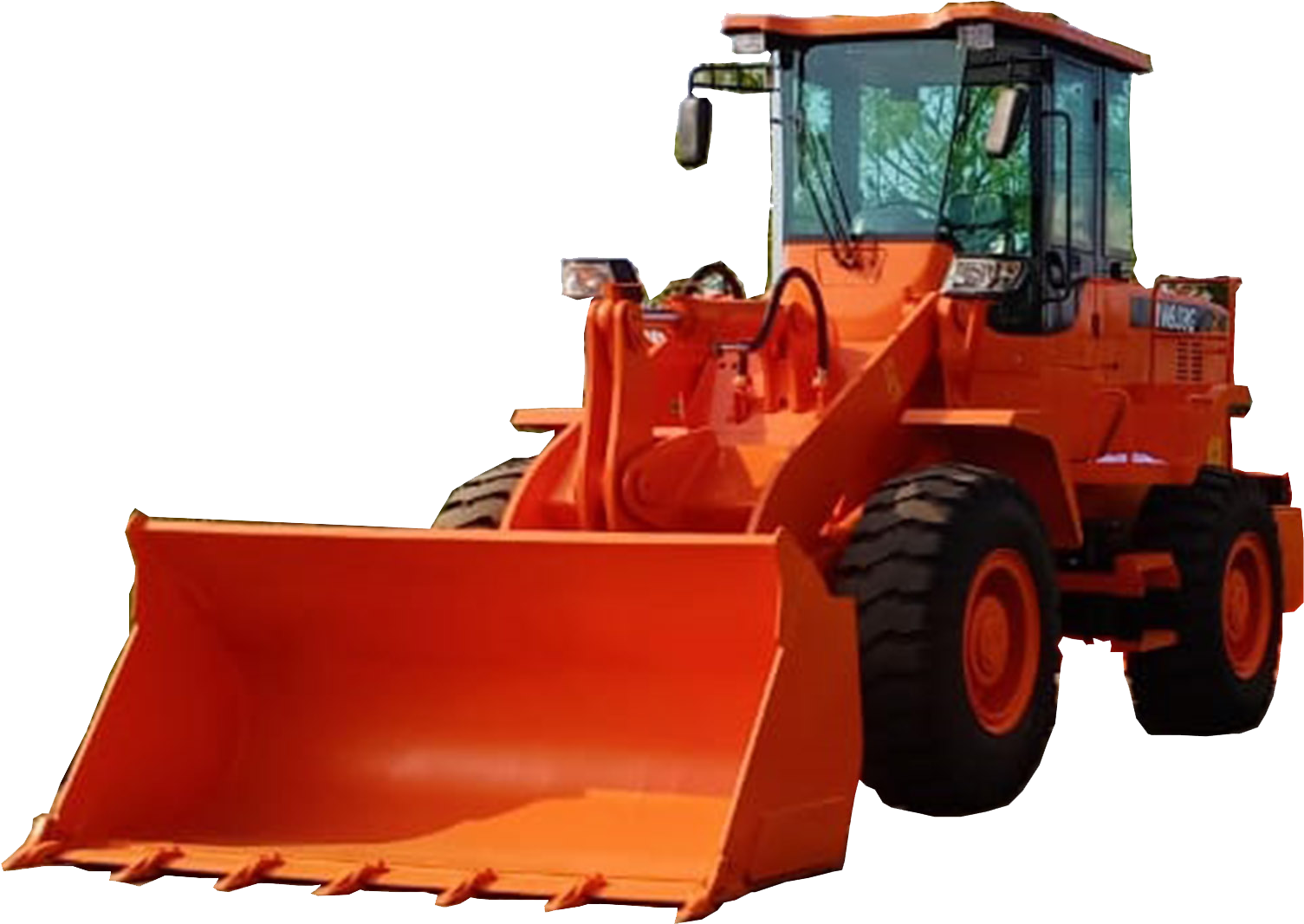

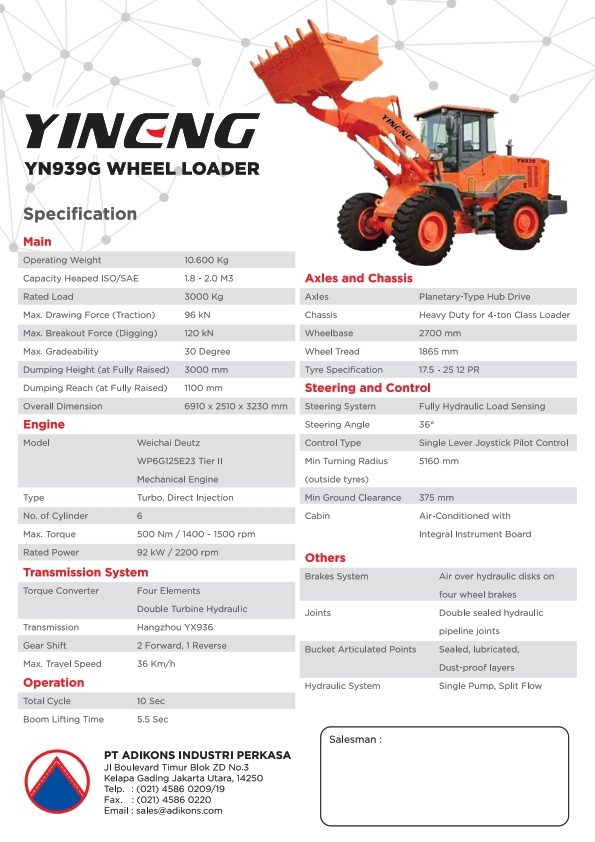

Yineng YN939
Operating Weight | 10600 KG |
---|---|
Capacity Heaped ISO/SAE | 1.8-2.0 M3 |
Max Drawing Force (Traction) | 96 kN |
Max Breakout Force (Digging) | 120 kN |
Max Gradeability | 30 Degree |
Dumping Height (At Fully Raised) | 3000 mm |
Dumping Reach (At Fully Raised) | 1100 mm |
Overall Dimension | 6910 x 2510 x 3230 mm |
Engine Model | Weichai Deutz WP6G125E23 Tier II Mechanical Engine |
