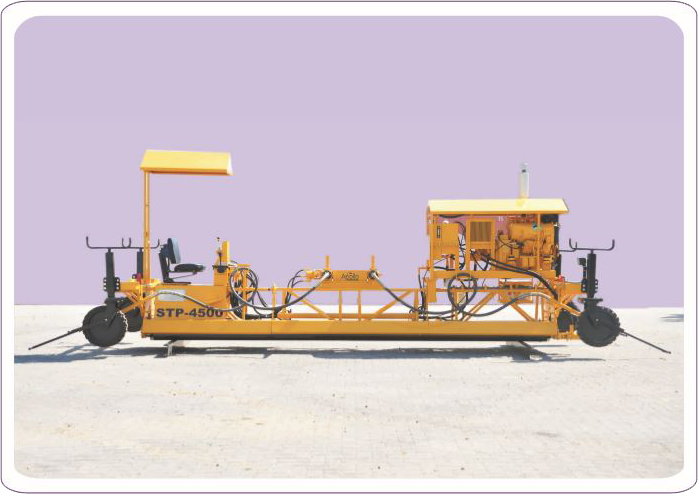

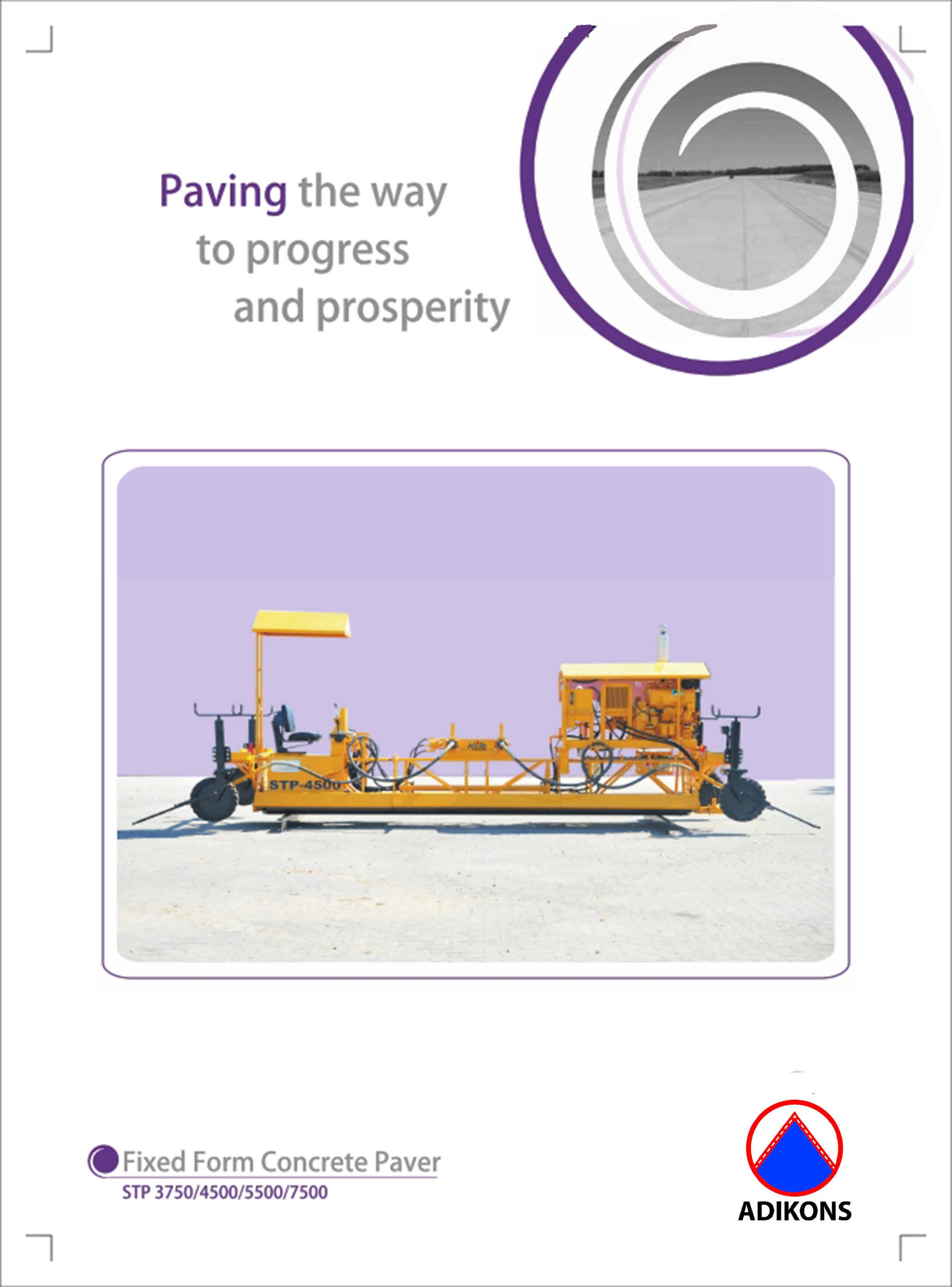

FIXED FORM CONCRETE PAVER (3.75M TO 7.5M PAVING WIDTH)

Fixed Form Pavers are manufactured with high tech mechanism with slab thickness used in various applications including airport, runway, city roads, parking lots and many more. Fixed form paver consists of various models including STP 3750, STP 4500, STP 5500, and STP 7500. All models are equipped with engine of 34HP @ 1500RPM having the drive tube speed of 0-80 RPM and strike tube speed of 0-400 RPM. The hydraulic tank capacity is 60 liters where as the fuel tank capacity is 44 liters. There are four screw jack tyres and of 12V DC supply voltage . These concrete pavers are used to pave roads, sidewalks, airports, parking lots and many more

Some of the features which are been considered with the fixed form concrete paver:

- finishing width up to 7.5 meters which can finish up to 300 sq ft per hour

- Frames are made from hollow sections

- Self-mounted powerful halogen lamps recharged through battery

- Steering is effortlessly and precisely controlled with levers governing two sets of drive tubes.
